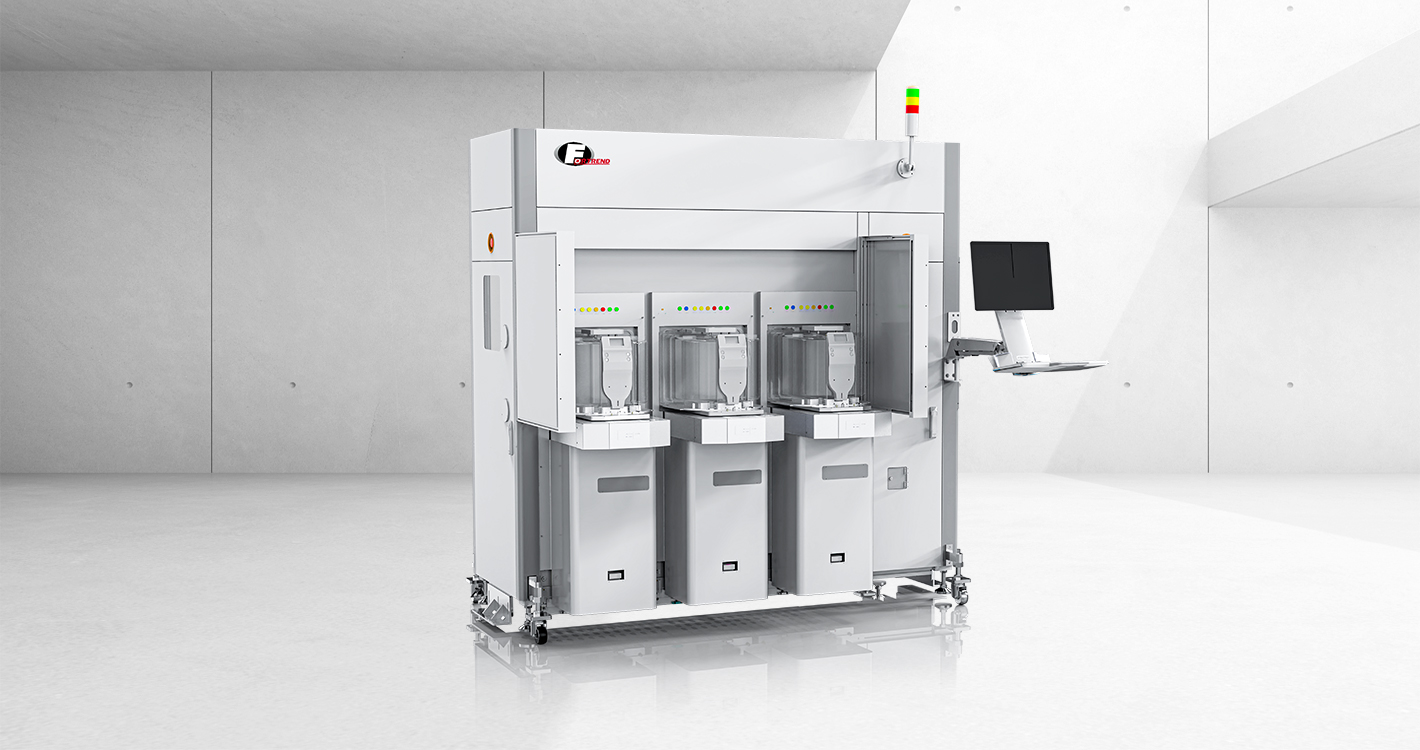

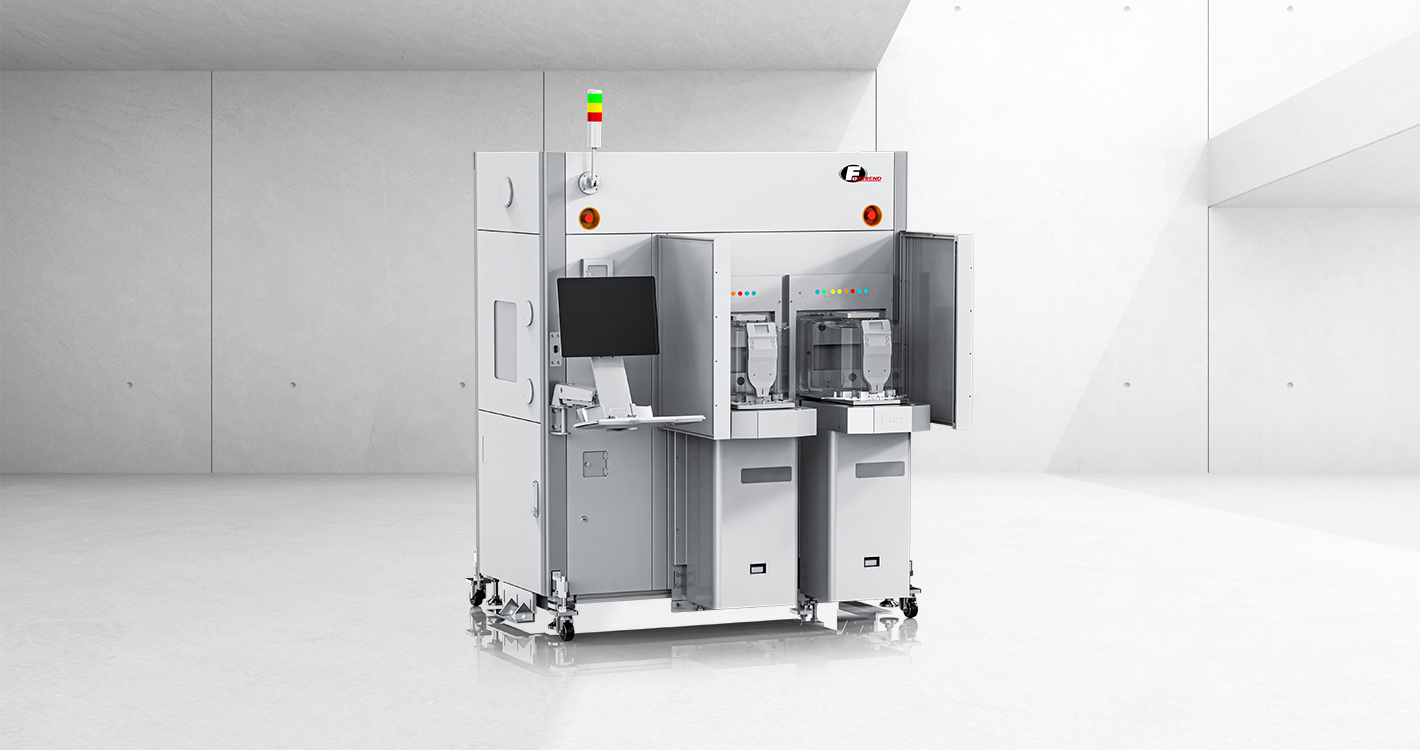

Fortrend wafer sorters are mainly used for wafer transfer, sorting, and merging operations, and can compatible with wafers ranging from 3" to 12".

Adopting a modular design, the internal cleanliness can achieve ISO Class 1, and it can accommodate wafers of various sizes and types. It features independent integrity, high cleanliness, high compatibility, and other characteristics.

It is compatible with all SEMI-standard FOUPs (Front Opening Unified Pods), FOSBs (Full Open Shuttle Bays), SMIF PODs  (Standard Mechanical InterFace Pods), and  Cassette .

Wafer thickness support: 100 - 1500μm

Workstations 2 to 8 are optional

Supports the transportation of wafers of various sizes

Various feeding methods are available

Compact design

SECS/GEM

safety curtain

OCR (top or bottom)

N2 purge LP

Product Showcase Video
Product Specifications


Rated VoltagePhase AC 220V 50/60 Hz
Rated Power3.52kW(Decide by config)
Comm InterfaceRJ45
Comm protocolASCI/HEX/HSMS&SECS Ⅱ
Software

Fortrend independently developed software

CleanlinessISO 14644-1 class 1 / ISO class 3
Uptime≥99%
MTBF4000 hours
MTTR≤4 hours
MTBA>100 hours
MTTA<10 hours
MCBF100,000Wafers
Wafer Breakage Rate1/1,000,000
OCR Accuracy Rate for Bare Wafers≥99.8%
Repeatability of Positioning Accuracy士0.1mm
