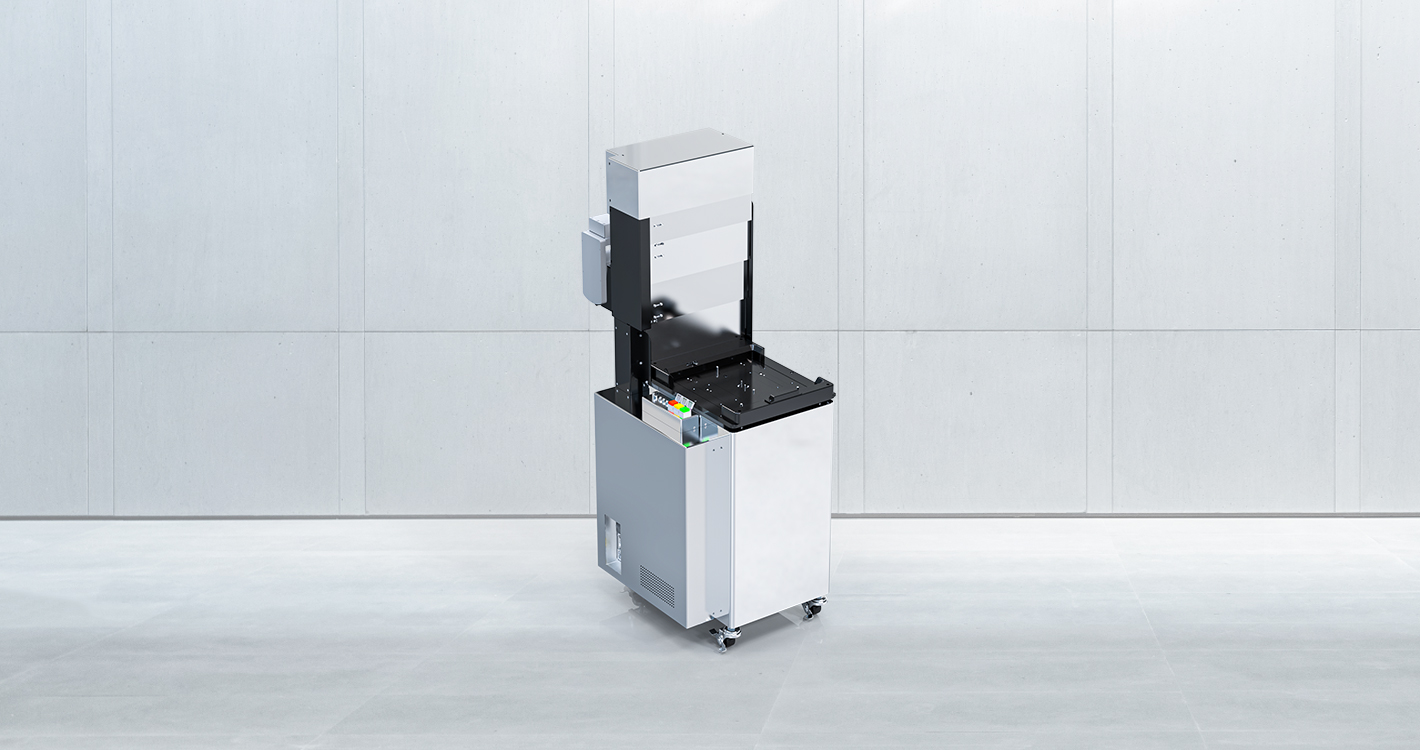

Small footprint saves valuable FAB floor space
ISO Class 2 or better cleanliness with active self-clean air flow design.
Lifts the Pod shell leaving the Wafer Cassette in a sealed mini-environment
Robot Arm loads Cassette to A400 3 level internal Carousal

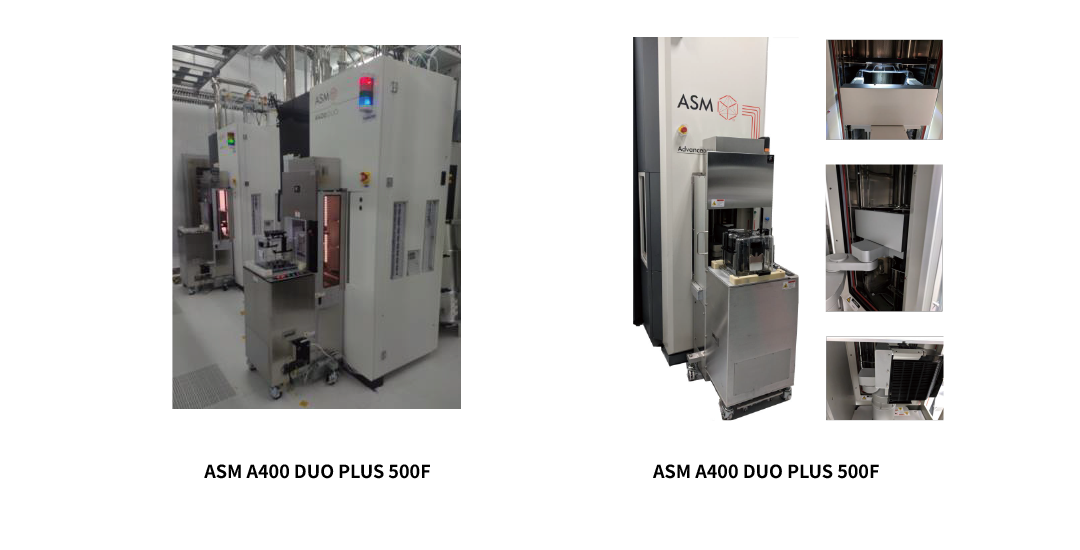

Drop in Replacement for existing A400 SMIF
ASM Approved SMIF Option
All electrical system with field programmable application software
Wafer Cassette Present Sensor

Wafer Protrusion Sensor

Pod Present Sensor

Wafer Mapping Sensor (Present, Cross Slot)

SEMI E19.4, S2 and S8 standards and CE certified

Mounts directly to existing ASM SMIF Mount

Teach Pendant

Optional Universal Floor Mount.

Optional RFID reader/writer

Product Specifications
POD/Wafer Size 200 mm
Overall, Height 710mm W x 660mm D x 1770mm H
Robot arm payload 8 KG
Weight 185 KG(Depends on configuration)
Rated voltage AC 220V
Rated power 2200W
The main material Aluminum alloy, stainless steel (SUS 304)
Noise level < 75 dBA
Communication

EIA-RS232C,SECS I/II

Parallel I/O,SEMI E23-96, IEEE-TTL

Communication protocol ASCII、TCP/P、ASCII、TCP/P
Optional options iD read/write device with RFID module or IR Link
Cleanliness ISO Class 2
Pod Interface SEMIE19.4
Throughput 70 sec load & 90sec unload
Working Temperature 0 ~ 40ºC
Working Humidity 5% ~ 90%
