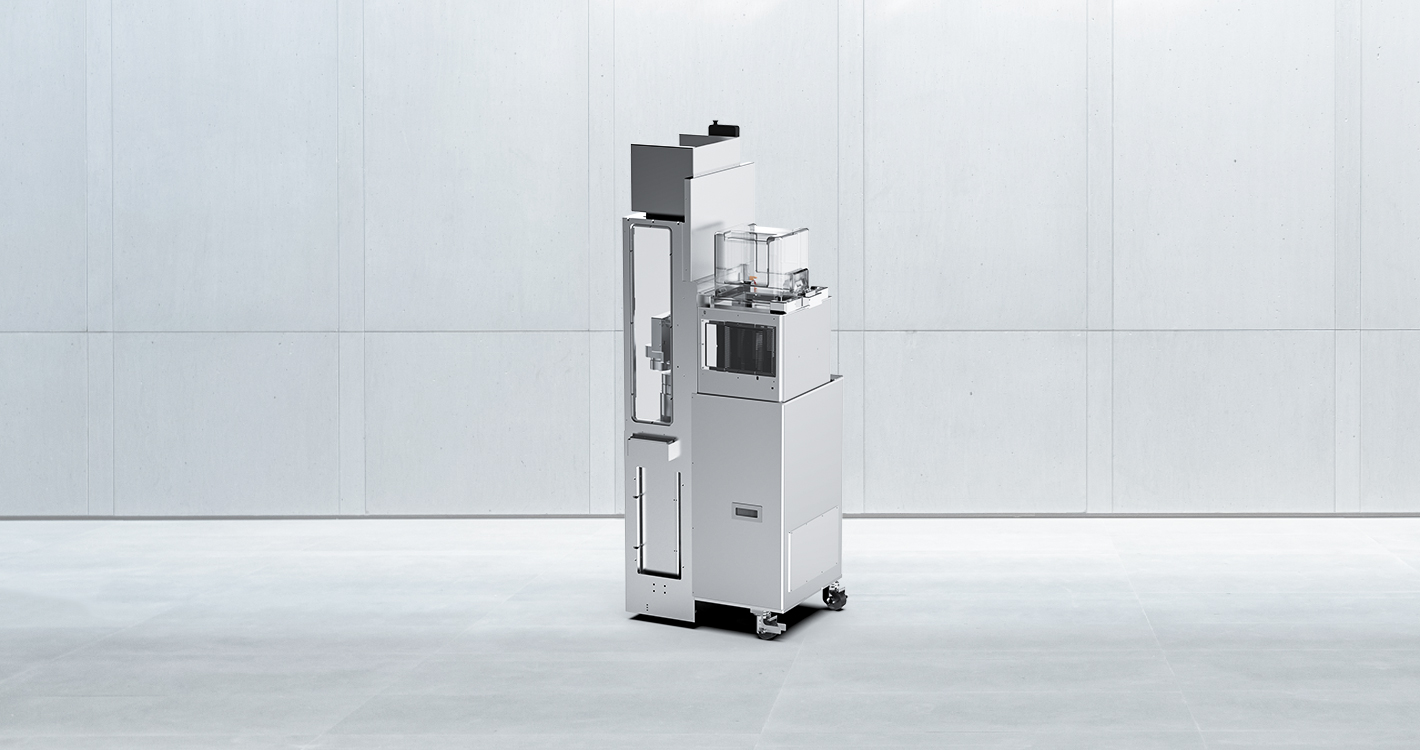

The fully automatic Fortrend Plus500S transfers 200mm cassettes from SMIF pods onto process stages in 90 seconds or less. The system can also be used to load cassettes into process tools in a non-SMIF environment.

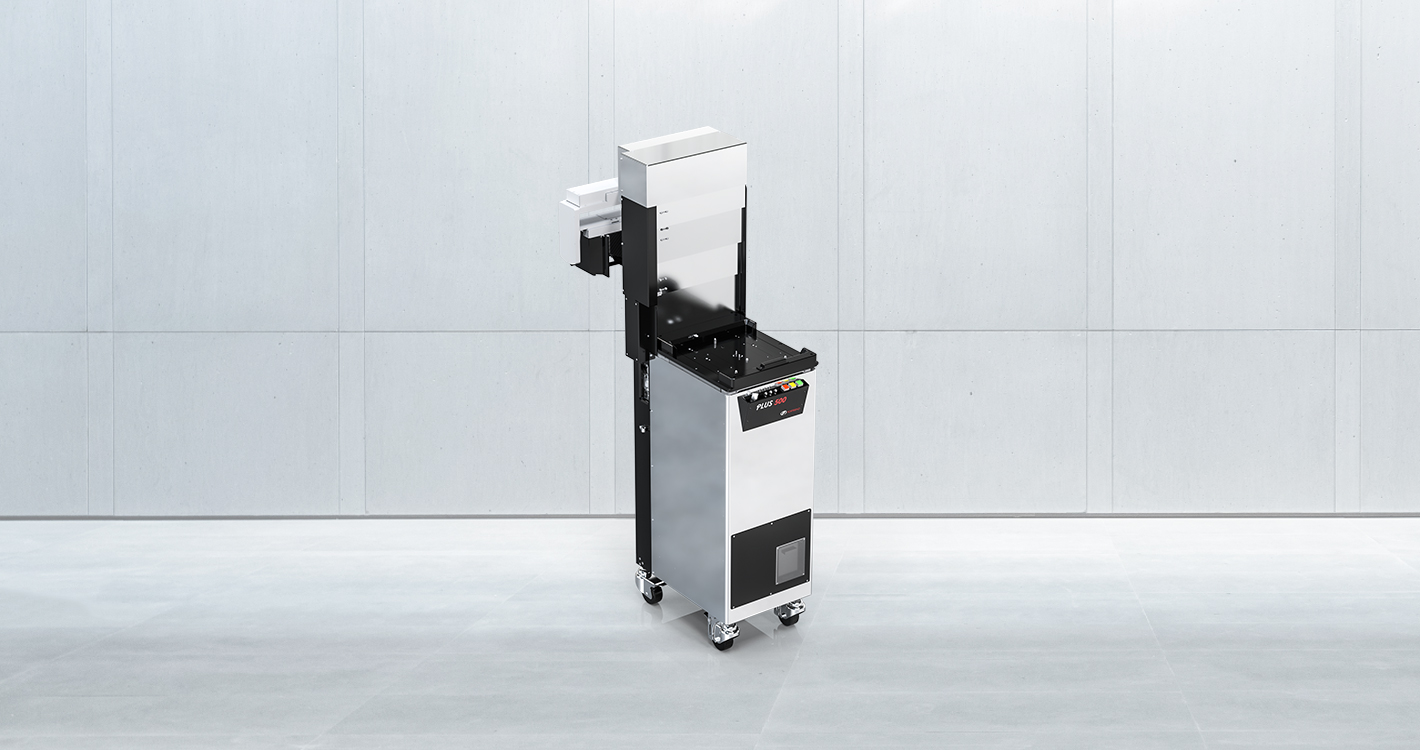

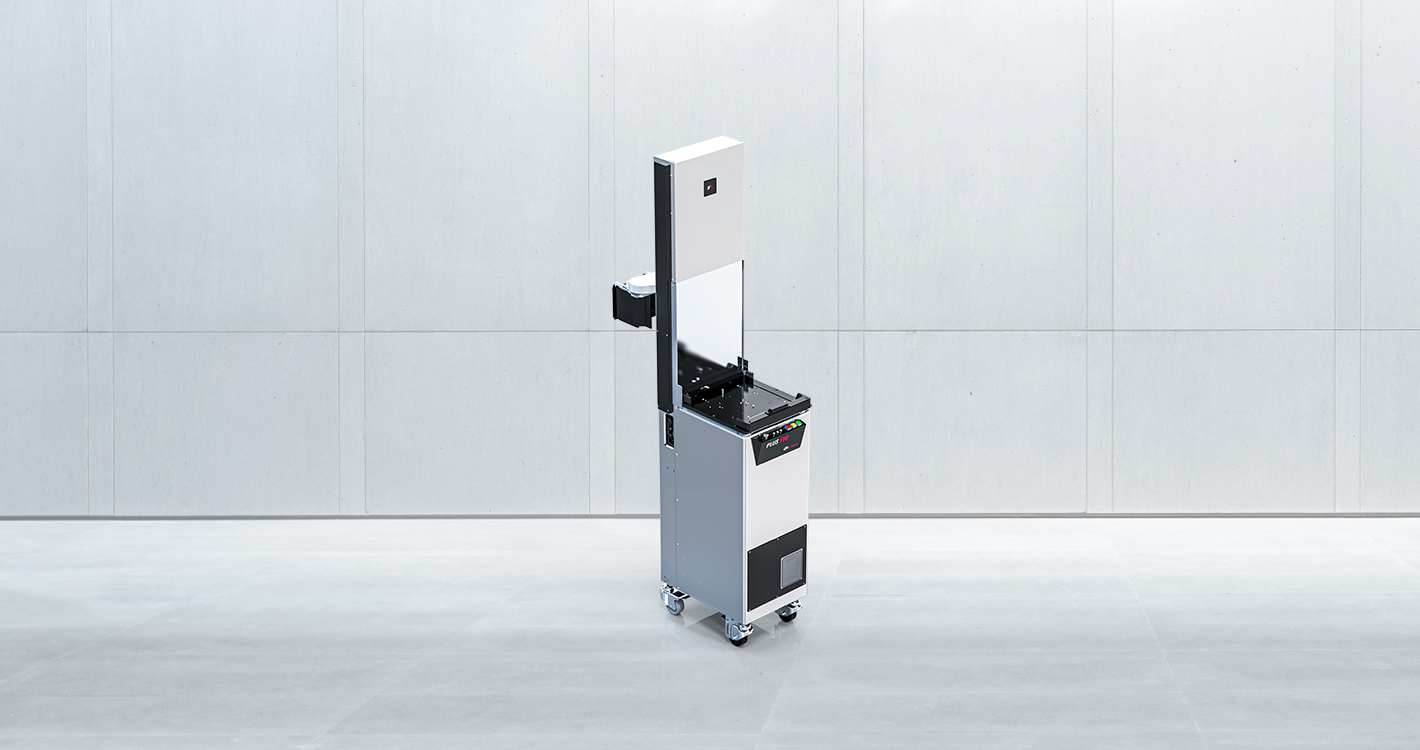

With a total footprint not much larger than a SMIF pod, the Plus 500 Ux is easy to integrate with AGV system and into small areas
A programmable robotic arm with end-effector that tilts wafers into the vertical position accommodates a wide variety of process tools.

Simple to Maintain
All Plus 500 models feature a variety of tool interface options: diamond-pin interface plate with quick-release latches and stand-alone floor mount enabling reconnection to and from virtually any process tool within 15 minutes or less. Considering that during ramp-up a pod loader may be disconnected and reconnected as often as twice a day to adjust the process tooling, this feature significantly reduces downtime and simplifies preventive maintenance.
Safe and Reliable
A patented, built-in mini-environment and airflow control system help protect wafers from contamination, while the robot is transferring pod between SMIF pods and tool stages.
With many fail-safe features including pod present sensor, wafer protrusion sensor, cassette overload sensors, constant toque dc stepper motors (with encoder feedbacks) for accurate and reliable motion controls, the Plus 500 Ux is the best choice for both OEMs and system integrators

Outstanding Support
Installation, on-site training, worldwide supports and variety choices of economical long-term maintenance contracts are available from Fortrend.
Established in 1979, Fortrend’s expertise in robotics, mechanics and software provide the optimum solution for semiconductor manufacturers who are driven to improve yield, increase throughput and reduce costs.
Product Specifications
MODEL PLUS 150UL-L PLUS 150UR-R PLUS 150UL-L-OHT PLUS 150UR-R-OHT
l/0 Panel Left Right Left Right
E84 COMM Board No No Yes Yes
Dimensions 59.2cm(W)x42cm(D)x121cm(H)
Wheel Height 6 to 15.3 cm tool dependent
Cycle Time (Load) <80 sec.(S Model without tilt and leave pod open after load)
Cycle Time (Unload) <80 sec.(S Model without tilt and leave pod open after load)
Arm Extension 390mm Arm Z Travel 40mm
Power

100 to 240 VAC @ 50/60 HZ

Weight 93 Kg (not including SMlFpod)
Power-on Reset Time <20 Secs SMIF Arm Payload 3.2 Kg

Arm Extent Axis Precision

+0.1 mm

Arm Elevator Axis Precision

+0.1 mm
Gripper Axis Precision ±0.5 mm Tilt Axis Precision +0.15 degree
Control Manual (Front Panel): Remote (From OEM Tool or ClM): Pendant

Communication Interface

RS232(Serial)-Fortrend HEX or ASCII or SECS Parallel I/0
Lot ID Reader Options

IR(Smart) Tag-8200 or 8400 series;

RFID Read/Write Module - Fortrend or Hermos or Other RFID;Intellion Lot Track System
